Customizable disk block for i3blocks
Script checks the disk usage of $BLOCK_INSTANCE using pythons os.statvfs module. If the instance isn't set the home-directory of the executing user will be set as default.
So a standard configuration minding a specific partition would look as follows:
[disk_nas]
label=:
instance=/nas
interval=30
command=$SCRIPT_DIR/disk_usage/disk_usage
Arguments
Additionally the script can take more arguments passed to it by command-line in a key=value fashion. The following is supported.
Warning Threshold
The warning threshold in percent (used disk space).
Display warnig color when 70% of the available disk space is used:
warn_threshold=70
Default: 80
Critical Threshold
The critical threshold in percent (used disk space)
Display critical color when 80% of the available disk space is used:
crit_threshold=80
Default: 90
Warning Color
Hex-color code to use when warn_threshold is reached:
warn_color=#90ce00
Default: #d6af4e
Critical Color
Hex-color code to use when crit_threshold is reached:
crit_color=#ce2500
Default: #d64e4e
Output Format
Output format used by pythons string formatting for displayment.
To get:
: 119.3G used of 518.5 total beeing 23.0%
the following format-argument must be passed to the script:
format="{used:.1f}G used of {total:.1f} total beeing {perc_used}%"
Quotes are required for format.
Fields
- avail: available disk space in gigabytes
- used: used disk space in gigabytes
- total: total diskspace in gigabytes
- perc_used: disk usage in percent
Example
[disk_root]
label=:
instance=/
interval=30
command=$SCRIPT_DIR/disk_usage/disk_usage format="{used:.1f}G used of {total:.1f} Total beeing {perc_used}%" warn_color=#90ce00
Click events
Upon a click event a terminal is opened with ncdu running for the configured partition. To adapt this to your personal setup, you'll need to change the function launch_ncdu():
def launch_ncdu(mp):
cmd = [
'/usr/bin/sakura',
'-t',
'pop-up',
'-e',
'/usr/bin/ncdu %s' % mp,
'-x',
]
subprocess.Popen(
cmd,
stdout=open(os.devnull, 'w'),
stderr=subprocess.STDOUT
)
Personally, I launch sakura with pop-up as title, which i can then use to configure i3 to set the window into floating mode:
for_window [title="pop-up"] floating enable border none sticky
Output of the launch-command will be redirected to /dev/null
Dependancies
The script uses only standard python modules and should therefore run on any python environment or should easily be made to run.
Help
- Advanced String Formatting: https://www.python.org/dev/peps/pep-3101/

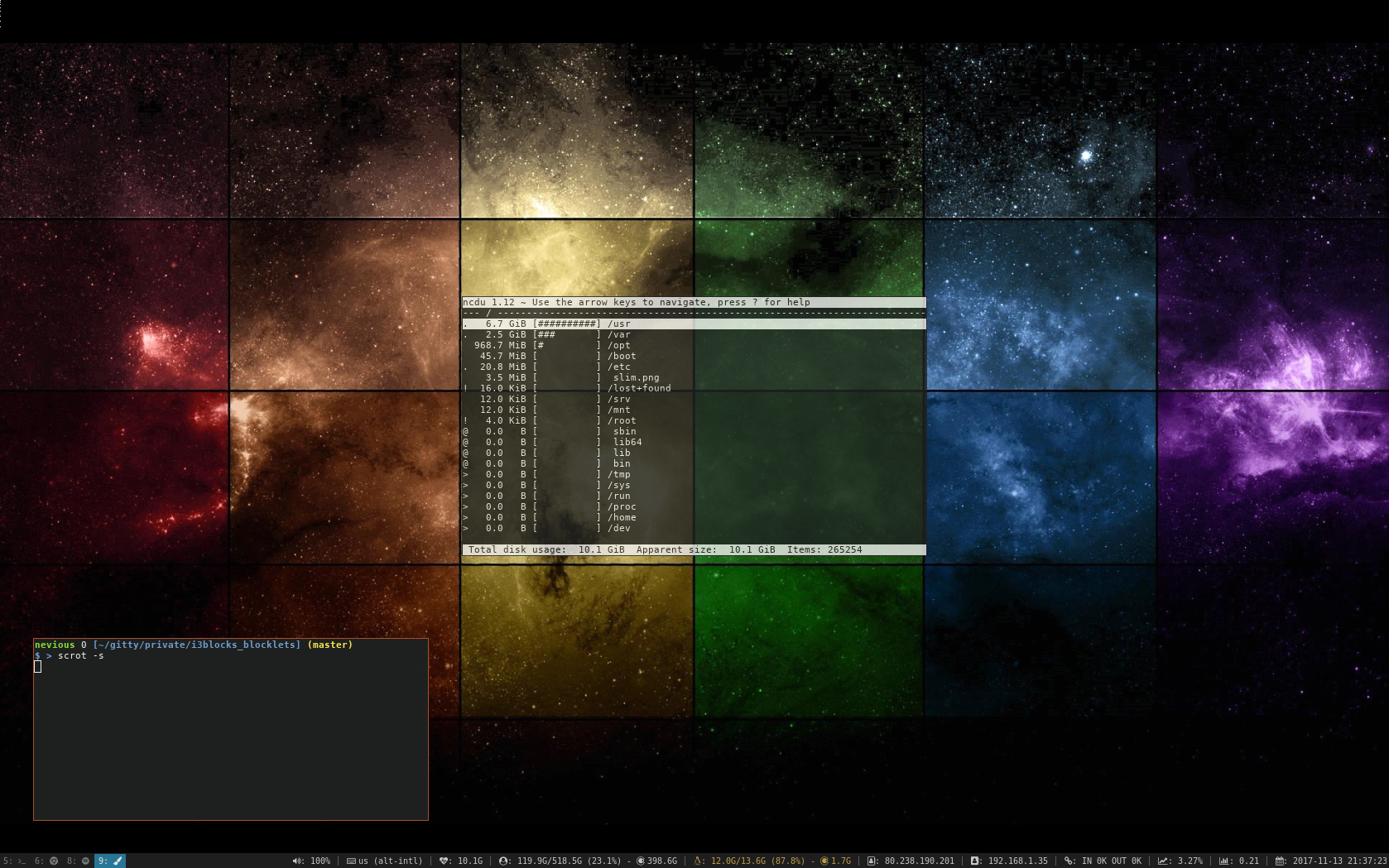

Screenshot
